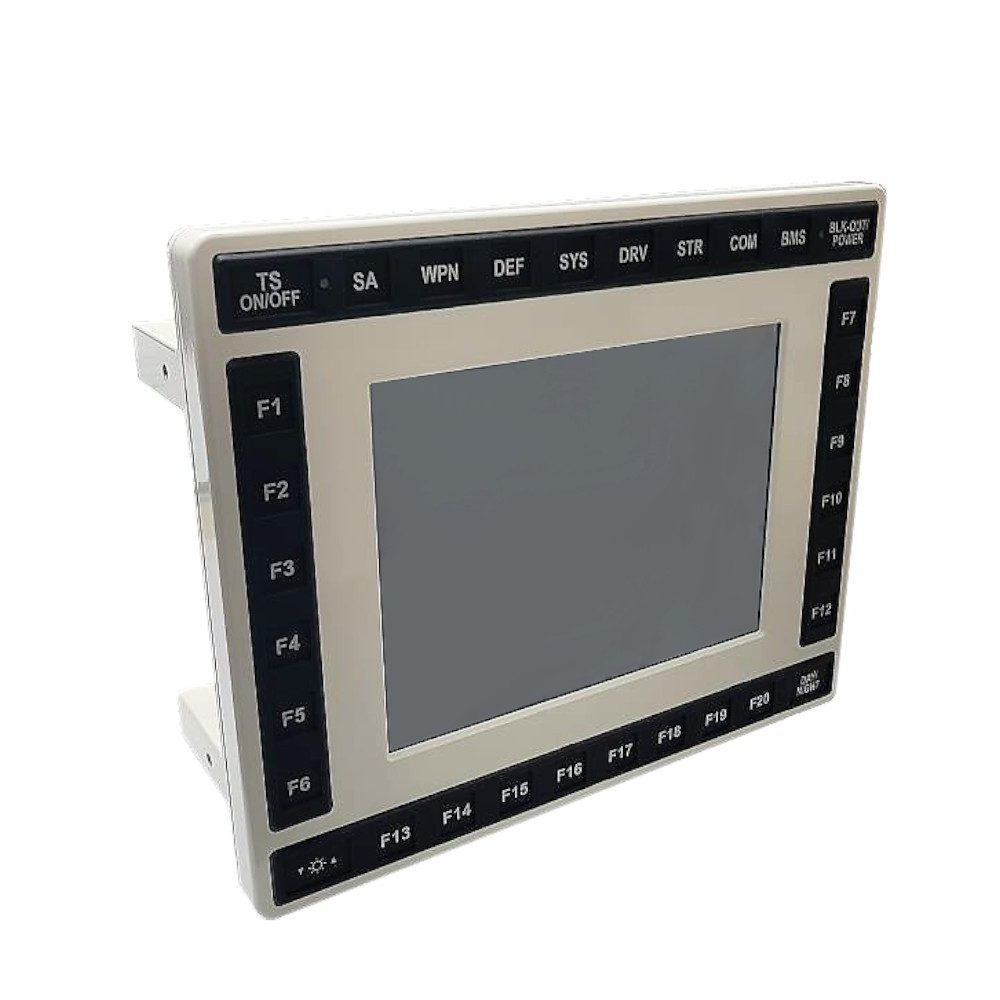

AVD104 – RUGGED PANEL PC

RUGGED PANEL PC Specifications
Display Size – 211.2 mm x 158.4mm (8.3” x 6.2”)
Physical Size – 340.4mm x 279.4mm x 94mm
Weight – 8Kg
Power, Typical – 28VDC, 55W
12-36VDC – Complies with MIL-STD 1275A
Brightness, typical – 1000cd/m²
Resolution – 1024 x 768
Viewing Angle – 160º Horizontal, 130º Vertical
Aspect Ratio – 4:3
I/O – 6 x Serial RS-232/422 (2×232 + 4×422) | 2 x ETH 10/100/1000 Mbps | 5 x USB in single connector | VGA Output
Connectors – D38999 with pins
MTBF – >10,000 Hours
Embedded CPU – Up to Intel Core i7 6th or 7th Gen
Bezel – Up to 32 Buttons, including brightness +/- control
Operating Temp – -40ºC +60ºC
EMC – Complies with MIL-STD-461 & MIL-STD-1275
Environmental – Complies with MIL-STD-810G
RUGGED PANEL PC Touch – Including Resistive Touch

SKU: AVD104 Category:

AVD104 - RUGGED PANEL PC
AVD104 - RUGGED PANEL PC

CPU

i7 6th, i7 7th Gen

Size

10,4’’

Aspect ratio

4/3

Resolution

1024×768

Panel type

TFT

Brightness

1000cd/m²

Military standart

MIL-STD-1275, MIL-STD-461, MIL-STD-810G

Operating temperature

-40C +60C

Touch Panel

Resistive Touch

Manufacturer

Avdor-HLT
