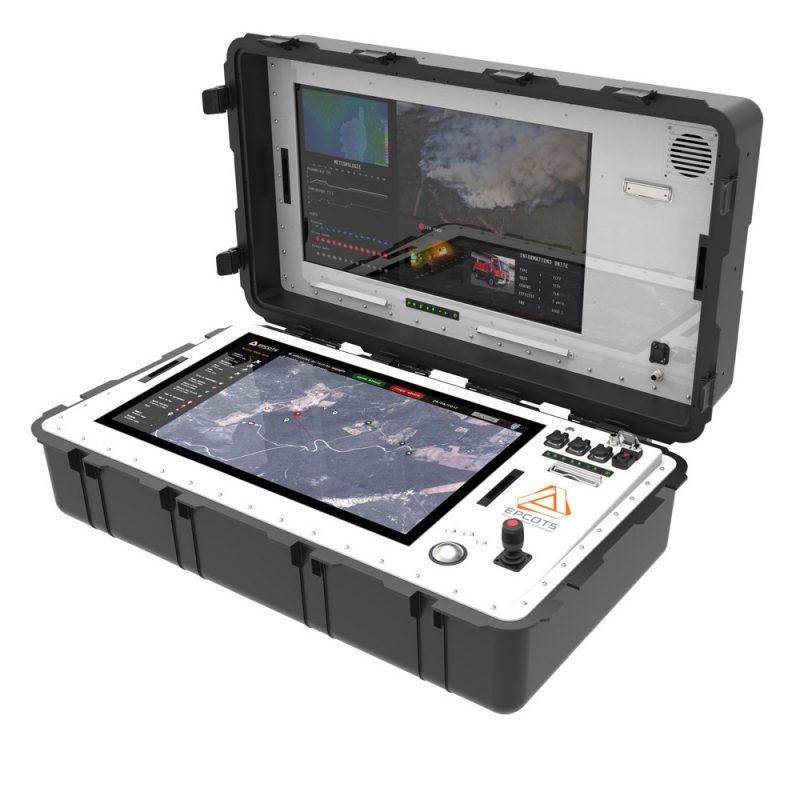

C-VIGIE CD-32-4K

Displays
• One 32’’ UHD display (Sunlight readability enhancement)
• One 31,5’’ FHD display (Sunlight readability enhancement)
Computer (example of configuration)
• CPU : 1,91 GHz, quad core, Intel Atom E3845
• Memory : up to 16 GB on DDR3L technology
• Storage : SSD, HDD, CFast, CF, removable or not
I/O
• Video (frame grabber) : PAL, NSTC, DVI, HD-SDI
• Data : Gbe LAN, USB 2.0, USB 3.0, COM
• Specific : GPS, CAN, OBD…
MMIs
• QWERTY or AZERTY keyboard
• Control panel (to be configured)
Physical features
• Console dimensions : 1140 (W) × 419 (H) × 643 (D) mm
• Console weight : 57 kg
Electrical features
• Power supply : 115-230 Vac, 50/60 Hz (compliant with STANAG 1008)
or 18-36 Vdc (compliant with MIL-STD-1275D)
• EMI/EMC : CE marking (MIL-STD-461F optional)
Environmental conditions
• Operating temperature : – 10°C to +55°C (MIL-STD-810G)
• Storage temperature : -30°C to +70°C (MIL-STD-810G)
• Humidity : 95%, non-condensing (MIL-STD-810G)
• Noise : <53 dBA (MIL-STD-740-1)
• Vibration : MIL-STD-167-1A
• Pitch/Roll : +/- 30° (MIL HDBK 2036)
• Protection rating : IP55
• Protection rating (non operating) : IP66



Category:
Size

31.5", 32"

CPU

Atom E3845

RAM

up to 16GB DDR3L

Operating temperature

– 10°C to +55°C

Military standart

MIL HDBK 2036, MIL-STD-167-1A, MIL-STD-740-1, MIL-STD-810G, MIL-STD-901D optional

Front panel protection

IP55

Manufacturer

Epcots
