Size | 10,4’’ |
---|---|
Aspect ratio | 4/3 |
Resolution | 1024×768 |
Panel type | TFT |
Brightness | 500 cd/m² |
Front panel protection | IP65 |
Military standart | MIL-STD-810G, MIL-STD-901D optional |
Operating temperature | – 10°C to +55°C |
Storage temperature | -30°C to +70°C |
Manufacturer | Epcots |
Rugged Monitors & Touch Screens

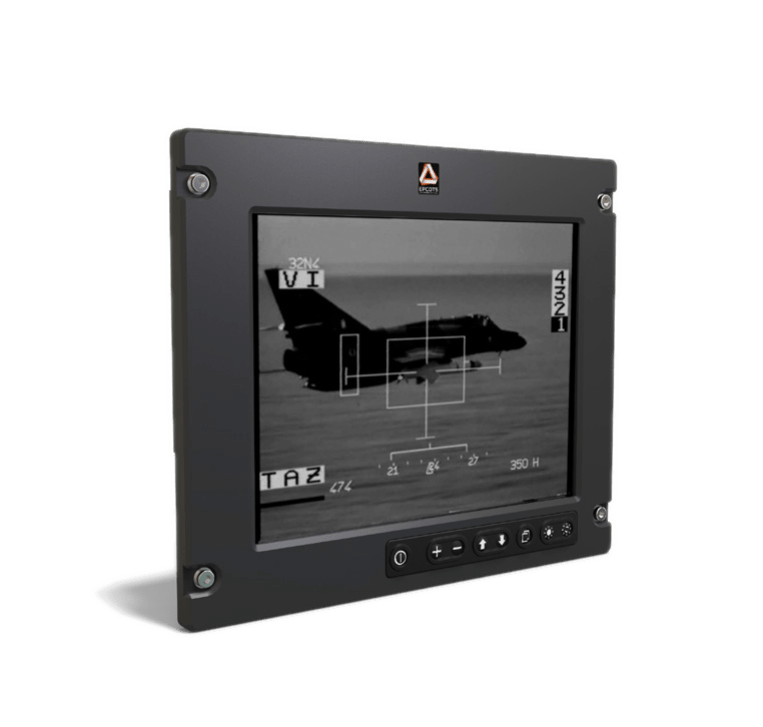

DI-PM10 RUGGED MONITOR 10”
I/O (to be selected by the customer)
Digital : DVI, HDMI, Display Port, HD-SDI, 3G-SDI
Analog : ARGB (VGA), Composite, S-video
Controls
On-Screen Display : Weatherproof dimmable front panel keyboard
Remote control : 1 RS232 port (on DB9 or D38999 connector)
Physical features
Monitor dimensions : 280 (W) × 235 (H) × 62 (D) mm
Monitor weight : 2,5 kg
Standard color : Fine textured, semi gloss, black
Mechanical interfaces : Panel mounting, 4 front captive screws
Electrical features
Power supply : 115-230 Vac, 50/60 Hz (compliant with STANAG 1008)or 18-36 Vdc (compliant with MIL-STD-1275D)
Power consumption : 20W
EMI/EMC : CE marking (MIL-STD-461F optional)
