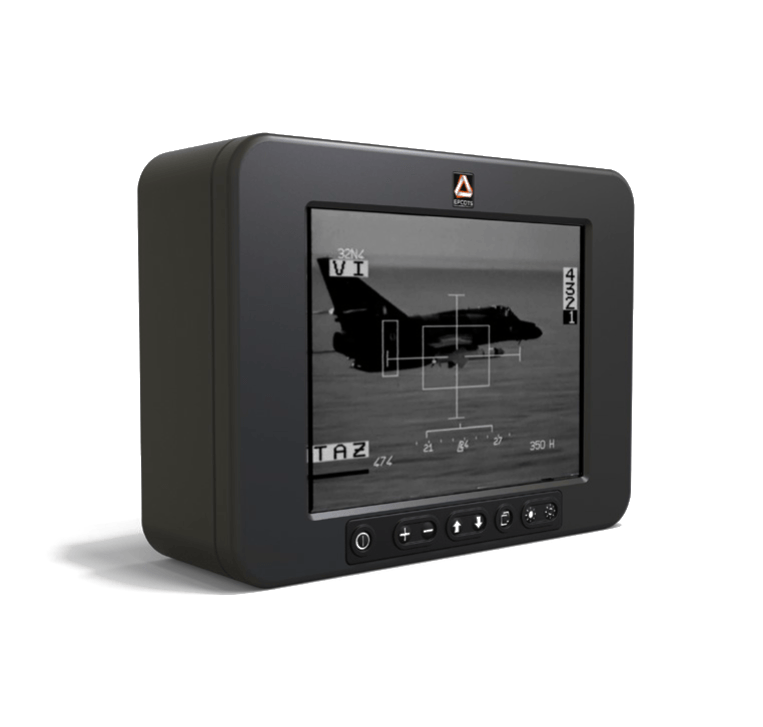

DI-SA8

I/O (to be selected by the customer)
Digital : DVI, HDMI, Display Port, HD-SDI, 3G-SDI
Analog : ARGB (VGA), Composite, S-video

Controls
On-Screen Display : Weatherproof dimmable front panel keyboard
Remote control : 1 RS232 port (on DB9 or D38999 connector)

Physical features
Monitor dimensions : 250 (W) × 215 (H) × 84 (D) mm
Monitor weight : 2 kg
Standard color : Fine textured, semi gloss, black
Mechanical interfaces : Rear mounting, VESA interface

Electrical features
Power supply : 115-230 Vac, 50/60 Hz (compliant with STANAG 1008) or 18-36 Vdc (compliant with MIL-STD-1275D)
Power consumption : 15W
EMI/EMC : CE marking (MIL-STD-461F optional)

SKU: DI-SA8 Category:
Size

8,4’’

Aspect ratio

4/3

Resolution

1024×768

Panel type

TFT

Brightness

500 cd/m²

Front panel protection

IP65

Military standart

MIL-STD-810G, MIL-STD-901D optional

Operating temperature

– 10°C to +55°C

Storage temperature

-30°C to +70°C

Manufacturer

Epcots
