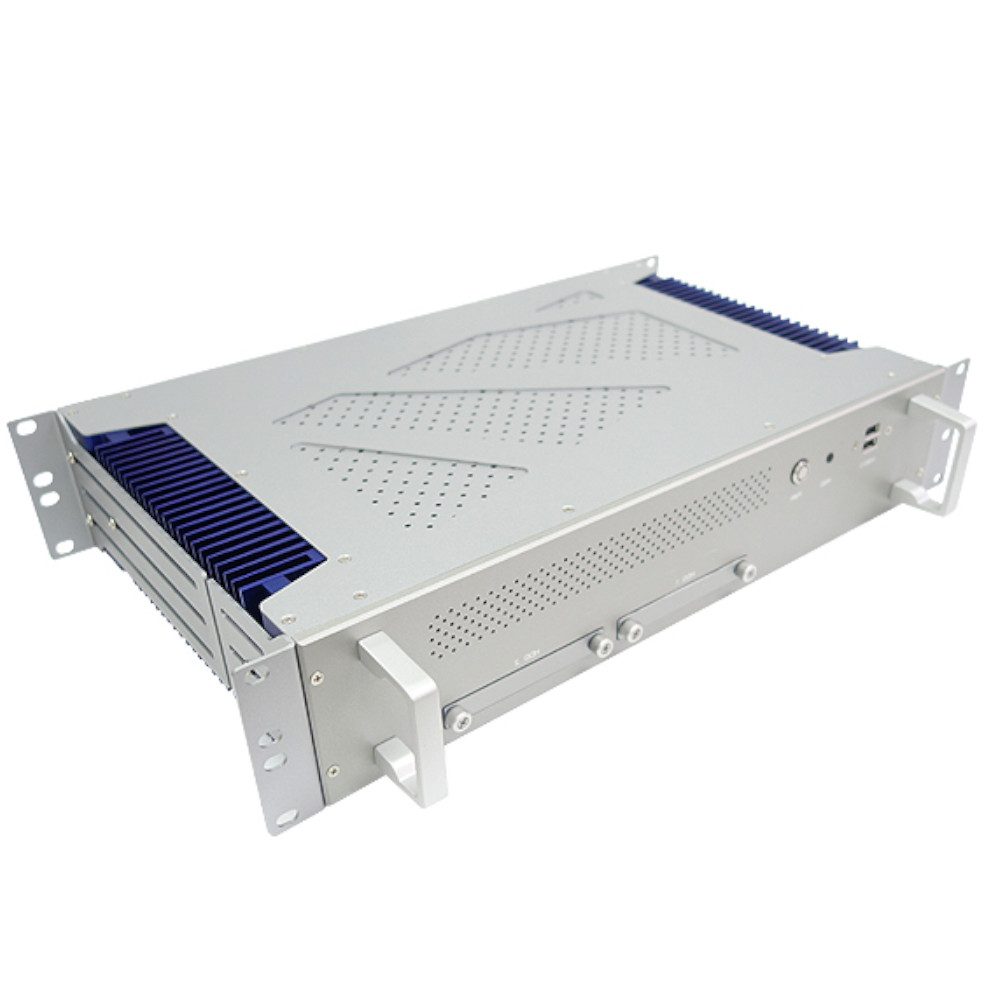

HORUS420 – 10GbE, Rackmount GPU Server Supporting 150W NVIDIA® GPU Intel® Skylake i7-6700TE

2U  Rackmount Server with Intel® Skylake i7-6700TE, supporting 120W nVidia® GPU , 2x 10GbE, 2x 2.5″ SSD Easy swap tray, 2x 12V DC-input, extended temp -40~+60 degree supports
NVIDIA® GTX 1050 Ti(CUDA Cores: 768)/GTX1060(CUDA Cores: 1280)/GTX1080 (CUDA Cores: 2560) GPU

  • Intel® Skylake i7-6700 (4 cores, 4GHz)
  • 4 x XR-DIMM DDR4 up to 64GB
  • NVIDIA® GTX 1050 Ti(CUDA Cores: 768)/NVIDIA® GTX 1660S (CUDA Cores: 1408)/NVIDIA® RTX 2060S (CUDA Cores: 2176) GPU
  • Dual 10 GbE Support
  • 4 x GbE, 6 x USB
  • 2 x 2.5″ HDD/ SSD easy swap tray
  • 2 x 12V DC-in
  • Wide temperature -40~+70 Degree supports
Category:

HORUS420 is designed with Intel 6th generation Skylake i7-6700 processor, Skylake i7-6700 processor presents outstanding CPU performance with quad cores up to 4GHz clock speed. System especially supports NVIDIA® GTX 1050 Ti (CUDA Cores: 768), even can up to powerful NVIDIA® RTX 2060S (CUDA Cores: 2176) graphic card for high efficiency image processing. With dual 10 GbE ensures high efficiency transmission without any delay for massive data. HORUS420 highlights on it rugged design and high functionality, system especially designed with dual sided thermal solution, allow powerful system presents supreme performance under harsh environment. HORUS420 supports extended temperature from -40°C to 50°C and 2x 12V DC input, by reserving one extra 12V DC-in, user can select even more powerful graphic card for their application requirement and equip sufficient power source.

Dual sided thermal solution ensures supreme system performance

With combination of high end CPU computing and graphic GPU power generate numerous heat, 7starlake emphasizes on providing exceeding thermal design guarantee superior system performance under critical environment. HORUS420 innovatively adopts dual sided thermal solution, with copper heat spreader directly touches the heat source components processor and graphic GPU to absorb the heat rapidly, heat then transfer to heat pipe; heat pipe is two-phase heat transfer involves the liquid-vapor phase change of a working fluid which can provide high efficiency heat transmission. The aluminum heat sink dissipates the heat into surrounding air promptly. One side thermal solution is mainly for Core i7-6700 65W processor and the other side is to dissipate the heat for graphic GTX 1050 Ti GPU. With unique thermal design, HORUS420 can ensure high performance and reliability under harsh environment. By integrating optional active cooling fan kits ensures system CPU i7-6700 and GPU GTX 1050 Ti run full speed without throttling while working under extended temperature environment -40°C to 50°C.

Dual 10 GbE offers high efficiency and stable transmission

In an advanced and high technology society, people yearn for high speed. To achieve zero delay transmission is always challenging, 7starlake HORUS420 offers dual 10 GbE allow system provide high-speed transmission without any delay and stable transmission. With 10 GbE, providing key improvements in terms of bandwidth, latency, scalability, reliability and application performance compare to traditional GbE.

Graphic card build in for up to 6 independent Display output

HORUS420 builds in graphic card with NVIDIA® GTX 1050 Ti/GTX 1660S/RTX 2060S by user’s requirement. By horizontal graphic card installation, HORUS420 is able to achieve slim size 2U despite of the add-on graphic module, which breaks the stereotype that can only apply cumbersome 4U rack mount with expansion slots in large-scale video wall application. The appeal of HORUS420 lies in its ability to provide creativity, scalability and functionality. It can flexibly match up different space allocation, no matter put in cabinet, machine room or control room.



System main board: ATX AB20
1. Intel Skylake Core i7-6700 powerful processor

HORUS420 is based ATX formfactor AB20 motherboard, powered by Intel 6th generation Skylake Core i7-6700, Skylake processor presenting superior CPU and graphics performance, providing quad cores up to 4GHz clock speed over compact size 2U rackmount.

2.Rich I/O interface

AB20 equips extensive I/O interface to fulfill different application requirements. The board supports four XR-DIMM RAM up to 64GB, it offers 4x LAN, 10x USB and 6x COM for device connects ability, with 4x Mini PCIe slot, 1x PCIex8 and1x PCIex4 can add on extra feature for different demands. With MXM slot can integrate with graphic card for image processing usage.

Manufacturer

7starlake
