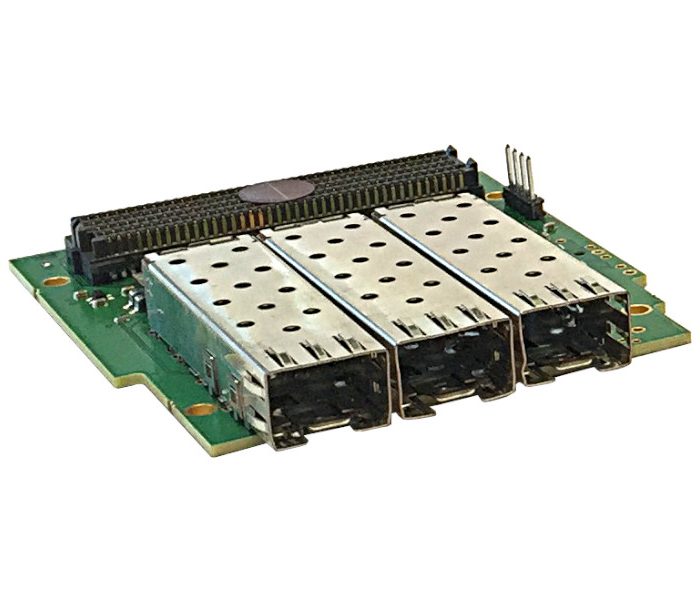

SFP/SFP+ FMC

High-Speed Serial links FPGA mezzanine with stacking capabilities

Getting some copper and optical interfaces is mandatory in every project. Therefore, being stuck with an insufficient number of interfaces could be a real handicap.

TECHWAY provides a very cost-effective solution with the FMC SFP/SFP+. This fully VITA 57.1 compliant mezzanine offers up to 4 SFP/SFP+ slots, supporting both copper or fiber interfaces.

Indeed, the board is protocol-agnostic and allows up to 10 Gbps per link.

As an option, the FMC SFP/SFP+ comes with an extra upper FMC connector which routes all unused signals to another mezzanine.

Category:

Description

Applications

  • Telecom
  • High-speed data-switching
  • Prototyping
  • Digital video
  • Optic or copper transceiver

Advantages

  • Ready-to-use
  • Easy-to-use
  • Cost-effective
  • High-speed protocol dedicated
  • Scalable FMC slot

Key features

  • 3 or 4 SFP/SFP+ slots
  • Up to 10 Gbps
  • Programmable or fixed oscillator
  • FMC connector on the top for mezzanine stack (option)
  • Protocols :
    • Ethernet (1 and 10 Gbps)
    • ARINC 818
    • sFPDP
    • Fiber Channel
    • Xilinx Aurora
    • User-defined
