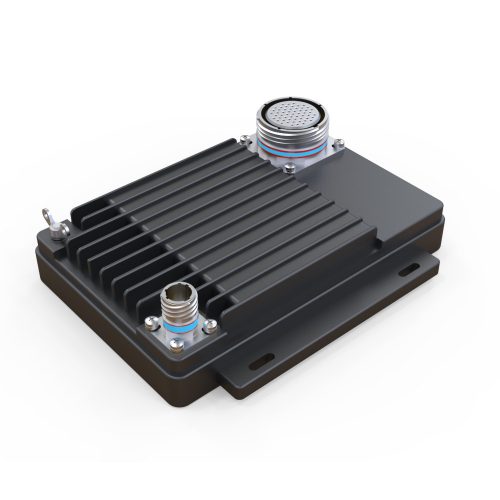

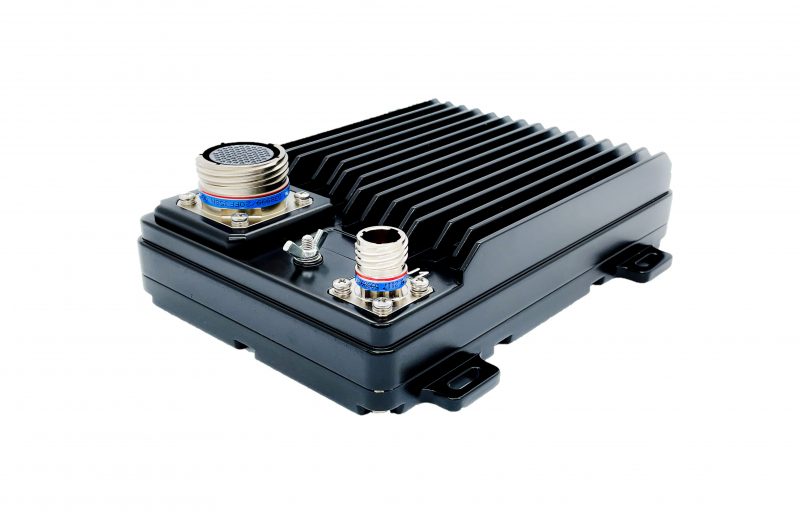

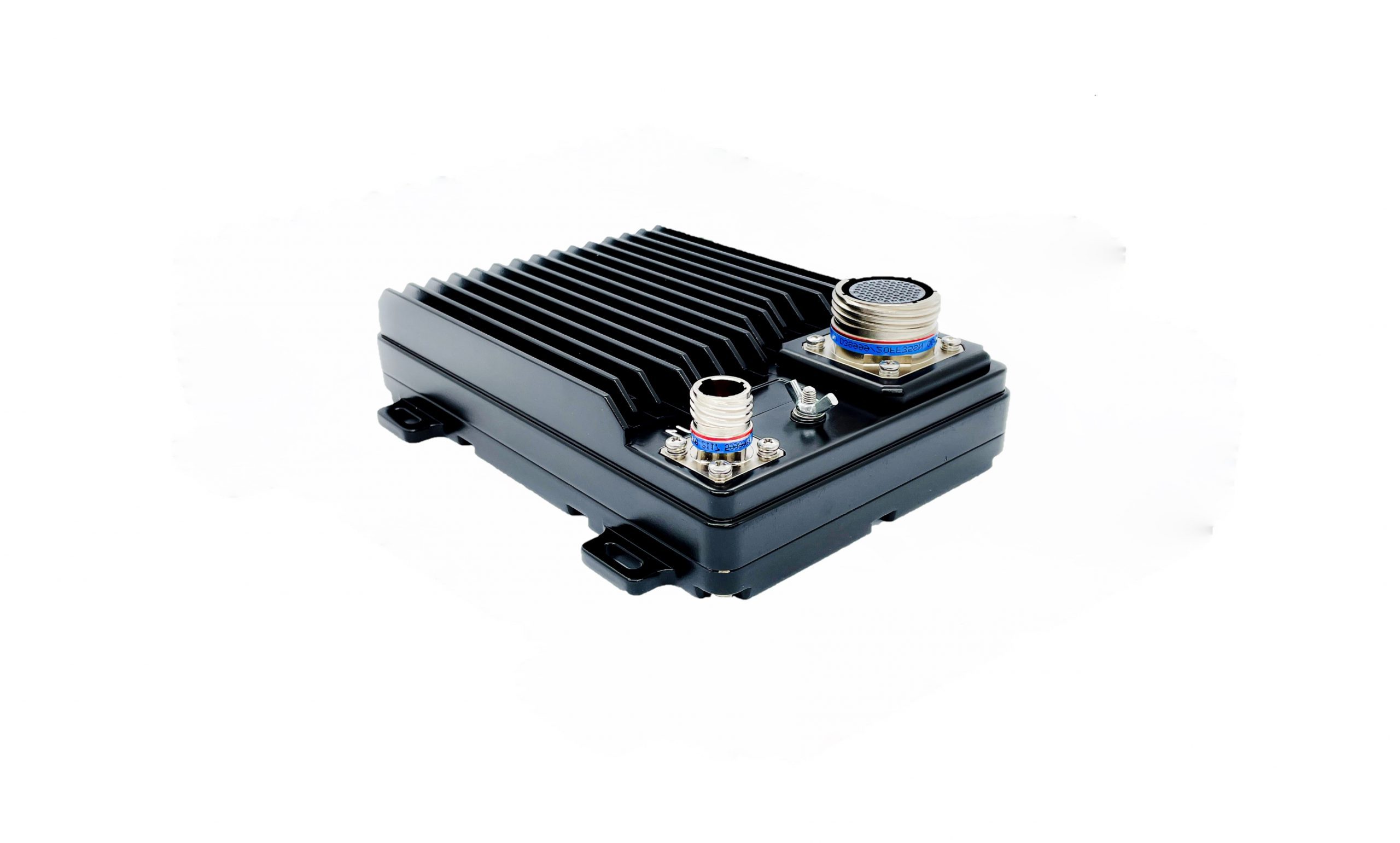

AVR-150 Rugged SWaP PC System

11th Gen Intel® Core i7 TigerLake Processor
Onboard LPDDR4x-4267 up to 32GB
Dual GbE, Dual USB2.0, COM port
Dual Independent Displays
9-36VDC Input with EMI Pre filter
MIL-STD-810 and MIL-STD-461 Compliant

Datasheet (PDF)



Category:

Small size weight and power rugged PC system includes 11th Gen i7 TigerLake CPU with Integrated Graphics controller and rich variety of IO options Onboard memory with extended temperature support all in a ruggedized small form factor embedded system.

Processor:

  • CPU: Intel TigerLake 15W UP3 i7-1185GRE
  • Memory: Onboard 32GB LPDDR4x with ECC
  • Storage: Integrated M.2 up to 512GB

Graphics:

  • Integrated Intel Iris Xe Graphics

38999 Connector:

  • Ethernet x 2 x ETH 1000 Mbps
  • USB 2.0 x 2
  • DP, eDP x 2 Independant
  • GPIO x 4 (optional)
  • RS-232/422/485 x 1
  • AUDIO Line-in/Line-out/MIC (optional)



Power Supply: 9-36VDC (with integrated Power Supply & Filters)

Environment:

  • Operating Temperature -40 ~ 55° C
  • Non-operating Temperature  -40 ~ 85° C
  • IP Rating IP65
  • Environmental MIL-STD-810
  • EMI/EMC MIL-STD-461

Physical Characteristics

  • Dimensions (W x H x D)   148 x 50 x 184 mm
  • Weight  <2Kg



Military standart

MIL-STD-810G, MIL-STD461

Operating temperature

-40 ~ 55

CPU

Atom E3900

Manufacturer

Avdor-HLT
