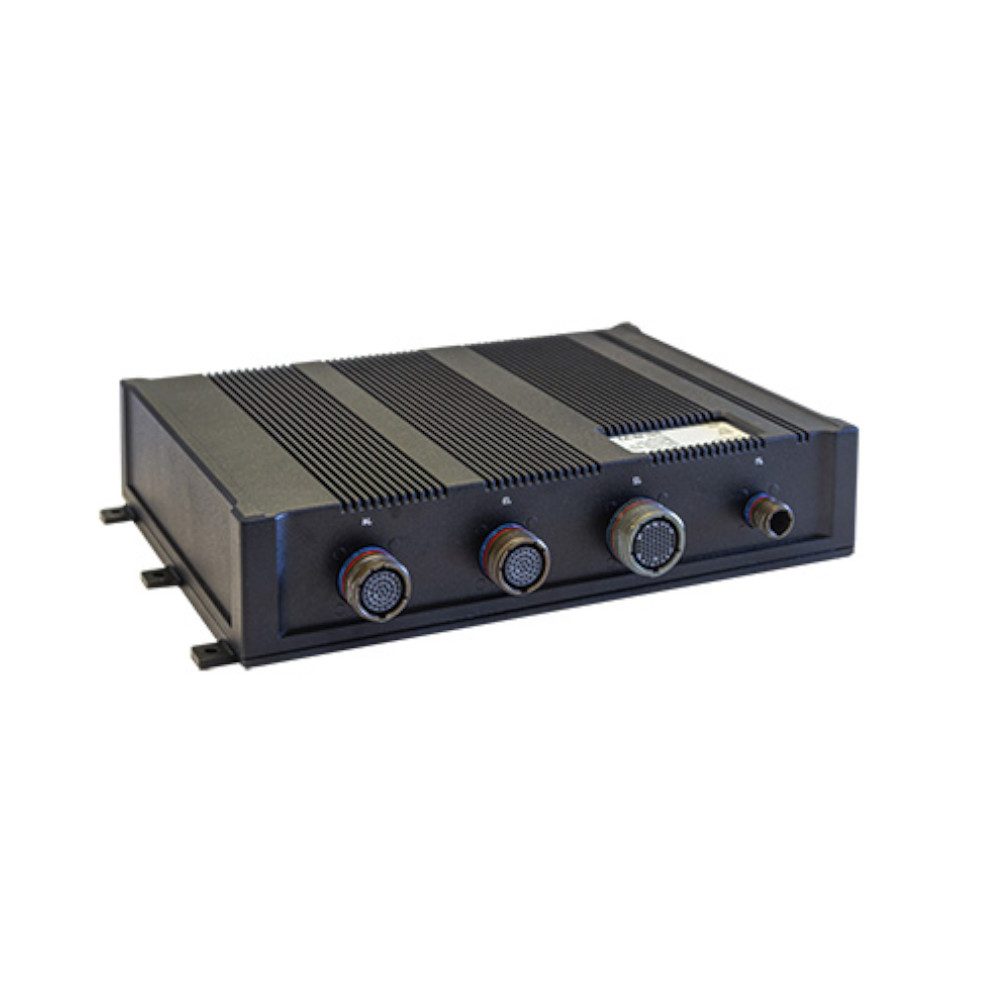

MILCOTS-4x – Rugged Embedded SWaP-C Computer
Key features are:
9th Generation Intel CPUs
Up to 64GB DDR4 memory (depending on CPU)
Fanless operation, also from -40°C to +75°C
Long term availability (Typically 10 years or more, 20+ years repair)
Extremely flexible
The MILCOTS-4x has been designed to withstand any harsh environments and extreme temperature conditions. The special rugged design, combined with the best industrial-grade components, offer high reliability and long-term performance.
[su_button url=”https://www.mpl.ch/t2061.html” target=”blank” style=”ghost” background=”#057287″ color=”#057287″ center=”yes” radius=”0″ icon=”icon: mail-forward” icon_color=”#057287″ text_shadow=”0px 0px 0px #000000″ rel=”nofollow” title=”read more”]Read More[/su_button]
The MILCOTS-4x Mission Computer was developed with the target to meet the MIL-STD-810 as well as parts of the DO-160 specifications. The solution is installed in a compact IP67 housing with a total of four MIL connectors.
The engineering approach has been taken very different to most rugged solution in the market. The internal wiring has been eliminated as much as possible. The D38999 MIL connectors are soldered on special MPL designed Star Flex PCBs. The EMI protection in each interface is integrated directly the connector on the PCBs. This will give best EMI efficiency.
To interface to the standard embedded CPU board from MPL, a mating interface board (ICC) has been designed. The flex part of the connector PCB is connected to the ICC which is interfacing cable free directly to the CPU board. With this concept MPL is able to meet basically any standard in the rugged computing environment. If required, the boards can be coated and bonded to increase the robustness even further.
The MILCOTS-4x comes with interfaces like DVI-D, USB 2.0, GPIOs, serial lines, dual LAN, and a wide power input. Additional expansions can be done over the internal expansion interfaces such as mPCIe, m.2, or PCIe/104, These expansions can be done easy and quickly be integrated into the system. This makes the solution flexible and cost efficient customizable.
Technical Features
Board Key Data
Processor Intel 9th Generation CPU (Celeron G4930E, Intel i3-9100HL, Intel i7-9850HE, Xeon E-2276ME)
Number of cores Up to 6 cores depending on CPU
Clock speed 1.6GHz up to 4.5GHz depending on CPU
L2 Cache 2 MB up to 12 MB depending on CPU
Passmark (all cores) 2624 up to 14397 depending on CPU
TPM 2.0 with EAL4.0 support
Memory Up to 64 GB DDR4 or ECC DDR4 depending on CPU
Mass storage NVMe, m.2, mSATA, SATA (removable, other configuration possible)
Interfaces
The selected connectors in this solution are: (other connectors or interfaces are possible)
Power: TVP02RW-9-35PN ( 6-pin )
Serial: TVP02RW-17-35SN ( 55-pin )
LAN: TVP02RW-15-35SN ( 37-pin )
DVI/USB: TVP02RW-15-35SA ( 37-pin )
Power
Input Voltage 10 – 36VDC input voltage range, ESD and EMC protected
Optional MIL-STD-1275D and/or MIL STD-704F
UPS Integrated, SuperCap to support low input voltage during 1.5 sec.
The MILCOTS-4x can be put into various standby mode levels (even below 95 mW) and can also be started with Wake-on-LAN (WOL). The operational power consumption is between 5 and 65W and the power consumption level can be limited. This enables the use for power savings as well as for power hungry applications.
Environment
Storage Temperature -45°C up to +85°C (-49°F to +185°F)
Operating Temperature -20°C up to +60°C (-4°F to +140°F)
Ext. Temp. (optional) -40°C up to +75°C (-40°F to +167°F)
Relative Humidity 5% to 95% non condensing
Schock 3 shocks in each dir. of the 3 axes, 35g, 18ms, half sine/ final peak saw tooth/ trapezoidal
Vibration broad-band random (operating) 10Hz-250Hz, 5.4m/s2, 10 minutes
Vibration broad-band random (operating after shock) 10Hz-250Hz, 42.5m/s2, 5 hours
Dimension 296 mm x 220 mm x 66 mm
Standard Compliance
The MILCOTS-4x is designed to meet or exceed the most common standards. Particular references are:
EMC EN 55022, EN 55024, EN 61000, MIL-STD-461E
Shock & Vibration EN 60068
Environmental & Safety EN 50155, MIL-STD-810G, EN 60601, EN 60950
Approval List CE, IEC 60945, IACS E10
Specifications subject to change without notice
