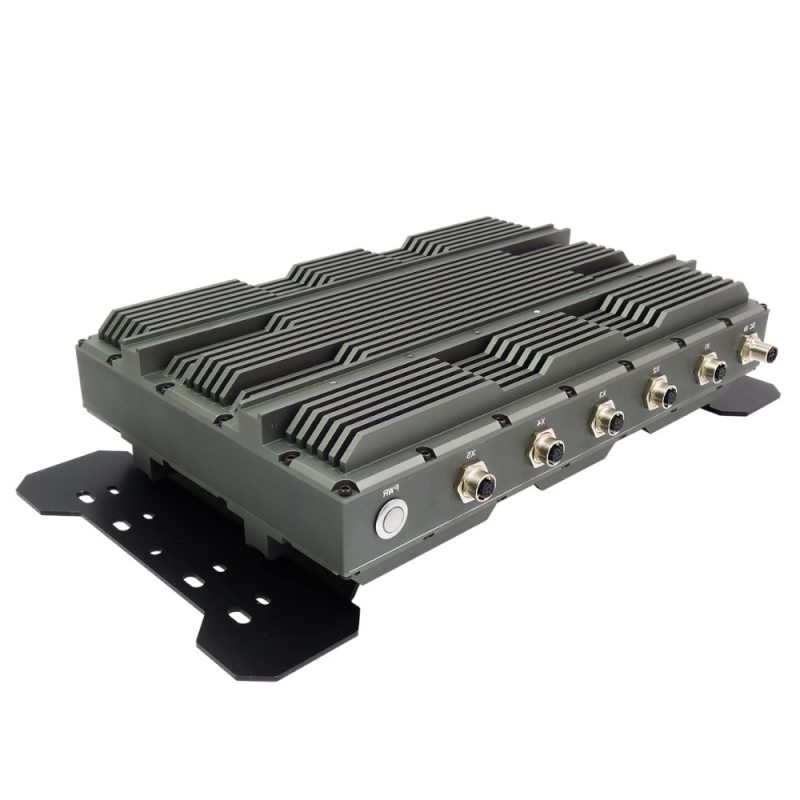

SR700-X3 – Target Acquisition GPGPU Intel® Core™ i7 -7820EQ Computer

Target Acquisition GPGPU Computer MIL-STD  Intel® Core™ i7 -7820EQ Processor, Upgradable GPU  (NVIDIA 1050Ti CUDA  768 GDDR5-4GB/GTX 1650 CUDA896 GDDR5-4GB/GTX 1660S CUDA1408 GDDR6-6GB) with high flexibility, IP65 protection, M12 Connectors ,9V to 36V DC-in, Extended Temp. -40°C to +70°C

  • Intel® 7th Gen Core™ i7-7820EQ
  • high flexibility With Upgradeble  GPU (NVIDIA 1050Ti CUDA 768 GDDR5-4GB/GTX 1650 CUDA 896 GDDR5-4GB/GTX 1660S CUDA1408 GDDR6-6GB)
  • Up to 32GB DDR4 SDRAM
  • M.2 drives up to 1TB
  • 2 x mPCIe, 1 x M.2 expansion slot
  • Full IP65 Classified
  • MIL-STD 810G/1275/704/461 compliant
  • 9V to 36V DC-in with power delay on/off
  • Extended operating temp. -40°C to 70°C

SR700-X3 rugged system is a powerful system configured with i7 Intel® 7th Gen Core™ i7-7820EQ and chipset soldering onboard, delivering an amazing level of CPU performance.

Processor i7-6820EQ plus Intel®QM170/QM175 chipset supports clock speed 2.8GHz, up to 3.7GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. SR700-X3 highlights on high flexibility with upgradeable CPU, GPU without constraining by small spaces and limited power consumption chassis. Besides its extreme rugged design, high functionality, SR700-X3 is designed under MIL-STD-810G and IP65 protection, possessing high adaptation toward dust, humidity, shock, vibration, extreme temperatures and electromagnetic interference characteristics.

SR700-X3 is the perfect solution to military purposes, such as defense, marine navigation and aviation technology. It also can withstand and survive in the harshest surroundings with extended temperature operation from -20 to 60℃.

The unique design of 7STARLAKE’s stack rack series integrate both horizontal and vertical placement. Dual-sided aluminum heat sink further secures extreme heat dissipation. 7STARLAKE incorporates exceptional heat radiating material with exceptional CNC cutting design. Fanless method relies heavily on the precise calculation of the efficiency of each heat dissipating component. Superior fanless design guarantees silent operation that enhances the flexibility of mobility and prevents the intrusion of dust and debris. SR700-X3 supports -20°C up to 60°C extended temperature operation, achieving ultimate reliability and stability.

7starlake has especially design a Wire Rope Vibration Isolator for SR700-X3. The Wire Rope Vibration Isolator may sustain higher vibration resistance of the product itself.

A Wire Rope Vibration Isolator is widely apply on supporting Military equipment because it may absorb and protect the object from vibration damage in any axes simultaneously, with the protection it may extended the product life operating under long hour vibration environment and vibration shock. The isolator is long life maintenance free tool and it may unload whenever required. Besides, Wipe Rope Vibration Isolators may survive under extreme temperature, corrosion, radioactivity, extreme dry or high humidity and UV Radiation environment.
