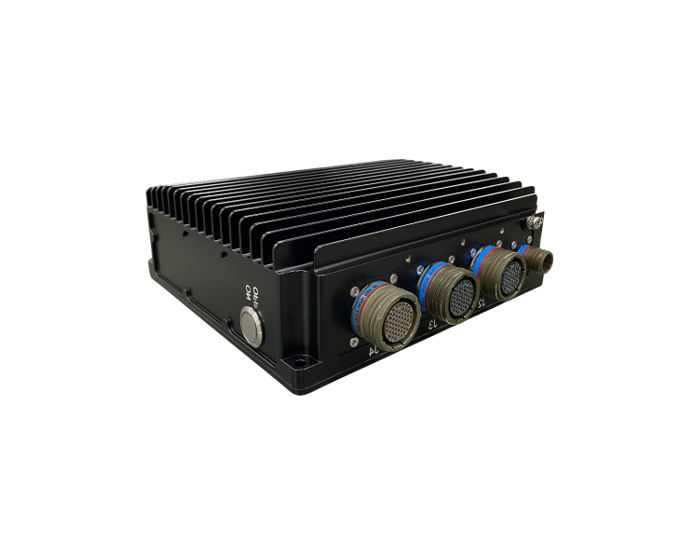

AVR-100-C Rugged SWaP PC System

Intel® Atom™ E3900 series/ Pentium N4200
Onboard LPDDR4-2400 up to 8GB, eMMC up to 64GB
LVDS 48-bit, HDMI up to 4K, Dual Displays
M.2 E-key 2230, F/S mPCIe, opt. mSATA
Dual GbE, USB3.0, 2 x RS-232/422/485
9-36VDC Input with EMI Pre filter
MIL-STD-810 and MIL-STD-461 Compliant

Datasheet (PDF)

Category:

Small size weight and power rugged PC system includes Atom E3900 CPU and variety of  IO options Onboard memory and storage with extended temperature support all in a ruggedized small form factor embedded system.

Processor:

  • CPU: Atom E3950 Processor, 2.0 GHz, 4 Cores
  • Memory: Onboard 4GB LPDDR4
  • Storage: eMMC up to 64GB

Graphics:

  • Controller Intel® Atom SoC integrated

38999 Connector:

  • Ethernet 2 x ETH 1000 Mbps
  • USB 3.0 2
  • HDMI 1
  • GPIO 16
  • RS-232/422/485 2 (Configurable)



Expansion:

  • miniPCIe full size x1
  • M.2 E-Key 2230 (PCIe x1, USB2.0) x1

Power Supply: 9-36VDC (with integrated Power Supply & Filters)

Environment:

  • Operating Temperature -40 ~ 55° C
  • Non-operating Temperature  -40 ~ 85° C
  • IP Rating IP67
  • Environmental MIL-STD-810
  • EMI/EMC MIL-STD-461

Physical Characteristics

  • Dimensions (W x H x D)   155 x 40 x 185 mm
  • Weight  <2Kg



Military standart

MIL-STD-810G, MIL-STD461

Operating temperature

-40 ~ 55

CPU

Atom E3900

Manufacturer

Avdor-HLT
