Rugged PC Fan-less Intel Core i5/i7

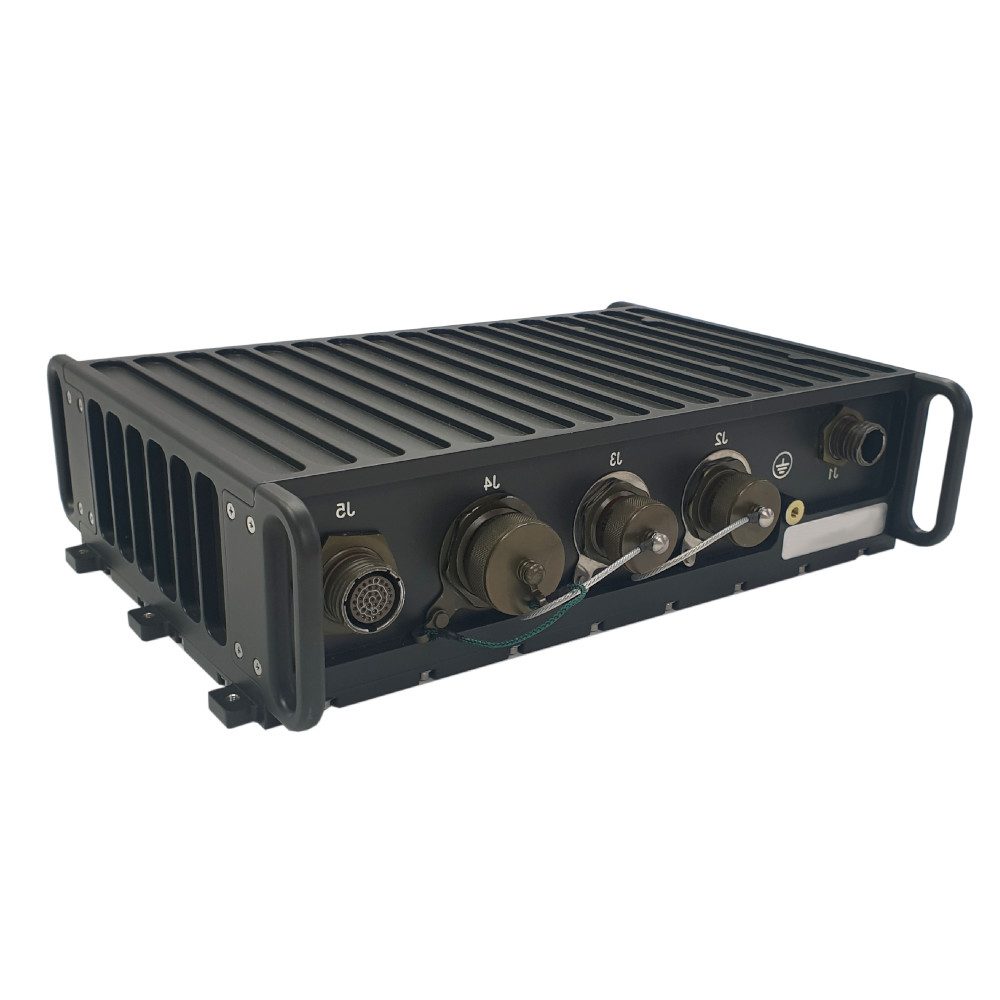

Rugged Fanless PC

Most powerful Rugged computer with passive cooling!


Processor System: CPU Intel Core i5 / i7


Memory: Technology – DDR3L 1600 MHz, Capacity-16 GB, Socket 2 x 204-pin SODIMM

Display: Controller Intel HD Graphics 520, Processor Graphics DirectX 11.3, OpenGL 4.4, and OpenCL 2.1,

Full AVC/VC1/MPEG2 HW Decode, VGA 1920 x 1200 @ 60Hz or 2048 x 1152 @ 60Hz with reduced blanking,

LVDS with 3.3V, 5V and 12V on LCD VDD power, 5V and 12V support on LVDS inverter, Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 at 60Hz,

HDMI Supports HDMI 1.4 for HD Video playback, Max resolution up to 4096 x 2160 at 24 Hz

Ethernet: Up to 6 x Speed 10/100/1000Mbps

Audio: Codec High Definition Audio (HD), Line-in, Line out, Mic-in

WatchDog Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage: 128GB SSD (up to 8TB available)

I/O: Power 28VDC, 1GB Ethernet up to 6, VGA x 1, HDMI x 1, USB 2.0 x 4, USB 3.0 x 2, Serial x 2 RS-232/422/485 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV), I2C x 1 (Shares with SMBus pin), SMBus x 1, GPIO 8-bit general purpose input/output

Operating Temperature: -40ºC +60ºC

Military standart

MIL-STD-810G, MIL-STD-901D optional

Operating temperature

-40C +60C


i3, i5, i7
