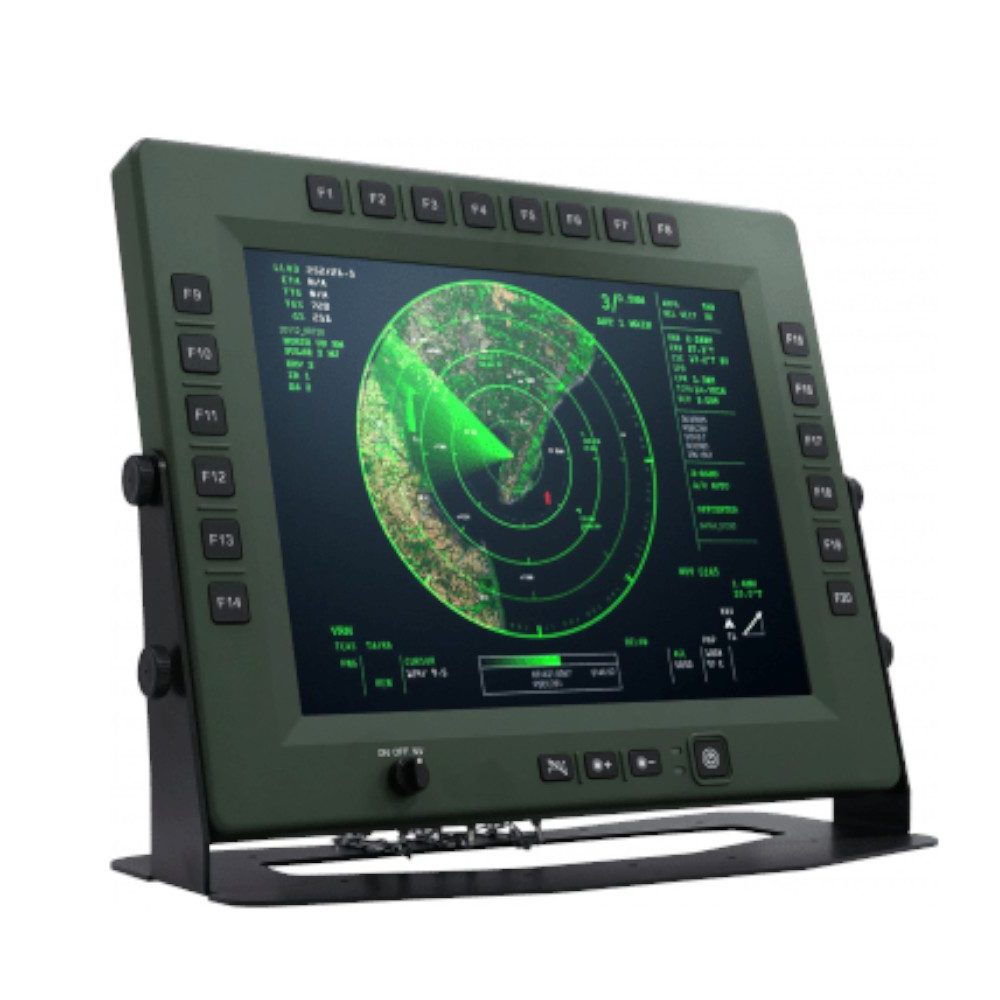

SKY15-P20 Military Display with 20 Programmable Function Keys

MIL-STD-810G Rugged Mission Display with MIL-DTL-38999 connectors

  • 20 Programmable function keys
  • Sunlight readable up to 1400 Nits
  • Dimmable Backlight to 1%
  • Night Vision Function Keys
  • Anti-Scratch GFG (Glass-Film-Glass) touch screen
  • 15” XGA TFT-LCD
  • 18V~36V DC-IN (Optional 12~40V ) , MIL-461/1275 compliance
  • All-aluminum housing & Convection Cooling
  • IR Touch (by option)
  • EMI Mesh (by option)

7STARLAKE SKY15-P20 rugged mission panel displays which are featuring LCD super brightness up to 1400 nits and night vision (NVIS) under 1% nits, optical bonding of protective glass (GFG), touch screens, EMI filtering / EMI mesh shielding, anti-reflection/anti-glare (AR/AG) coatings, the rugged panel displays also designed with IP-65 waterproof and dust proof all-aluminum housings, support extended operating temperature range from -20°C to 60°C and flexibly support extended DC power input range from 18V to 36V.

Sunlight Readable up to 1400 Nits

SKY15-P20 ruggedized smart display can support sunlight-readable to meet high ambient light conditions such as direct sunlight, it also adopt our excellent optic bonding technical process, when bonded together the light passes through the bonded layers and is absorbed somewhat into the screen. Optical bonding is therefore important in making screens sunlight readable.

Night Vision Mode Support

When system at night mode, the operator can adjust brightness by hard key to turn it to darker, the display brightness down to under 1% nits or other customized night vision mode immediately, and the display gets ready at low brightness right away once its trigger and protect the usage of night vision devices at once.

MIL-DTL 38999

MIL-DTL-38999 is a high-performance cylindrical connector family designed to withstand the extreme shock, exposure and vibration that are commonplace in Defense and aerospace applications. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.

Soft Touch Button

SKY15-P20 equipped up to 20 programmable function keys, 3 OSD keys,1 triple knob, 1 power button by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.




1400 Nits

Military standart

MIL-DTL-38999, MIL-STD-1275, MIL-STD-461, MIL-STD-810G


DC-IN 18V~36V
