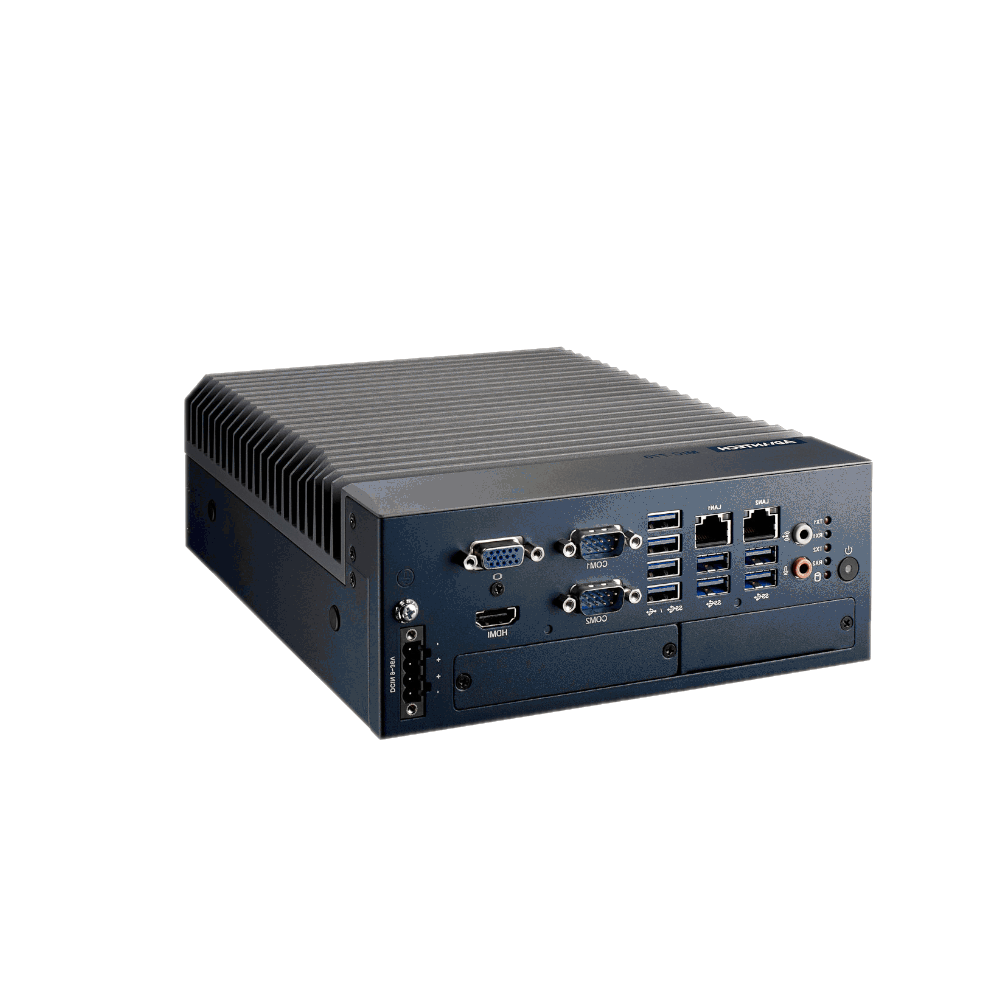

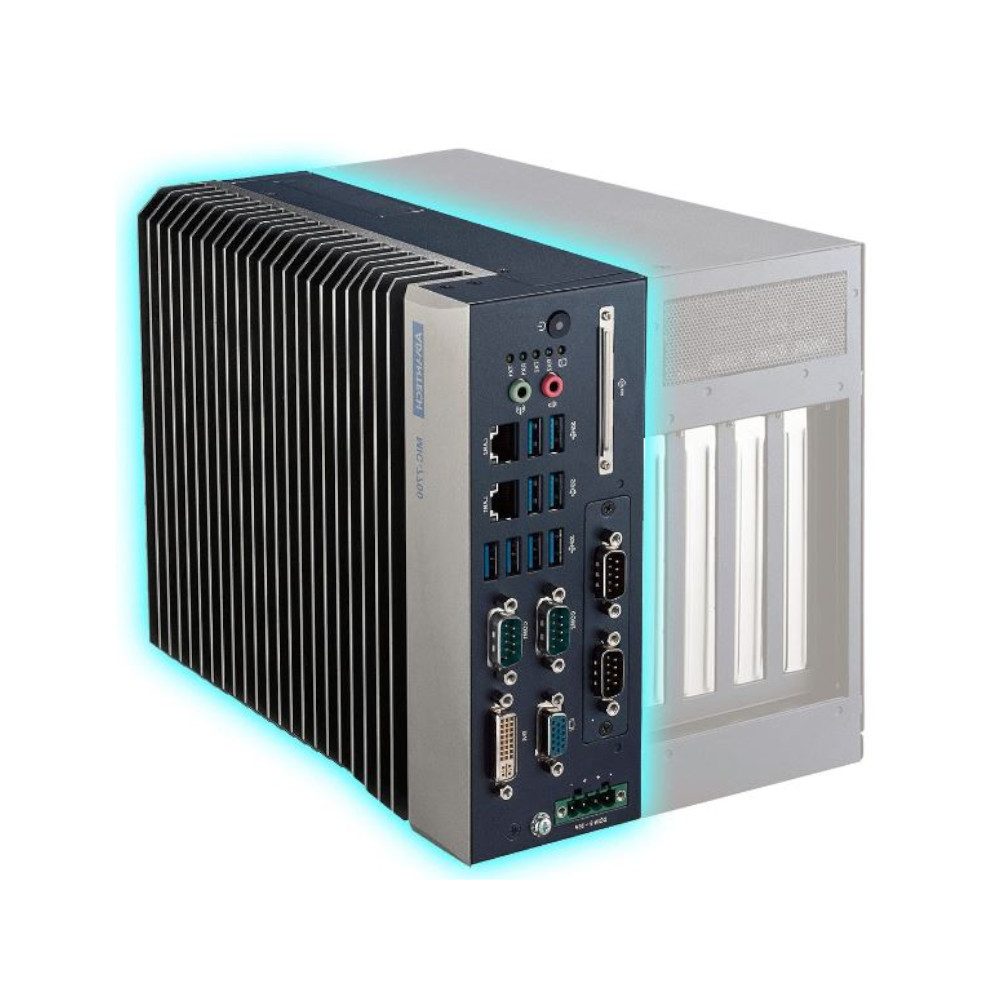

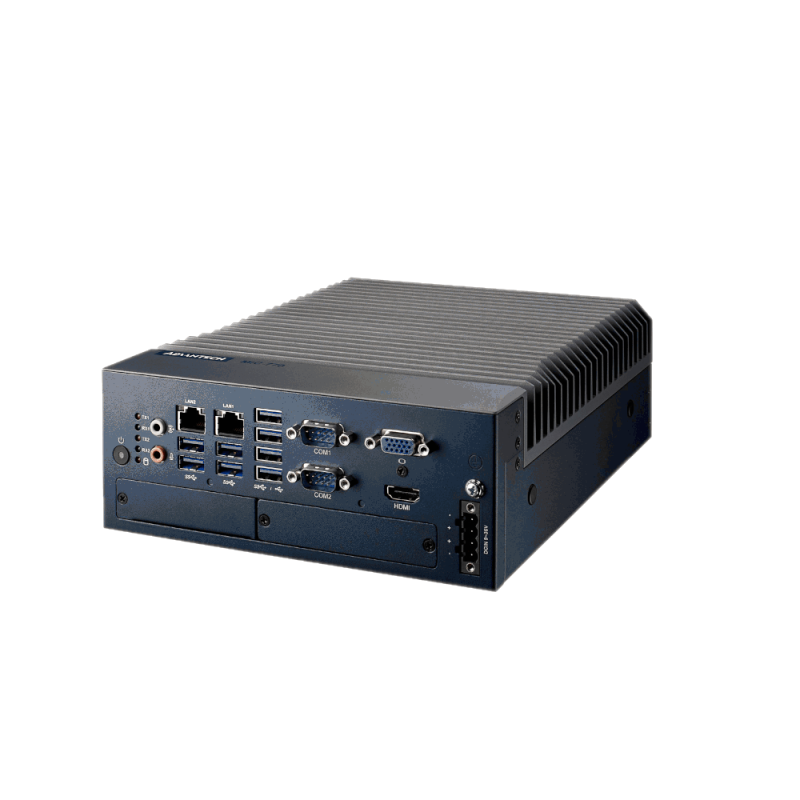

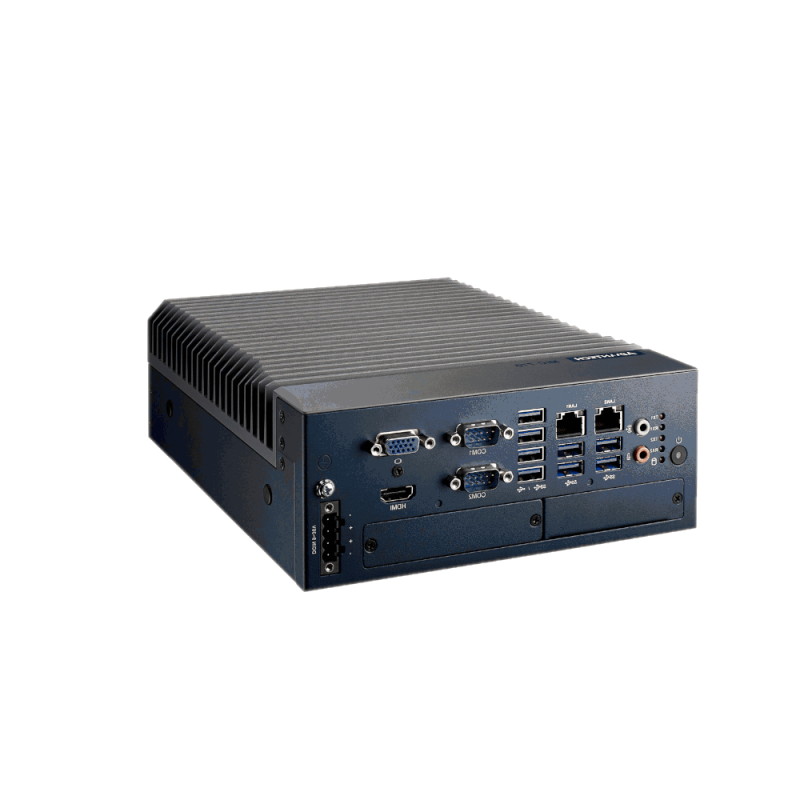

MIC-770 Compact Fanless System with 8th Gen Intel® Core™ i CPU Socket (LGA 1151)

  • Intel® 8th Gen Core™ i CPU socket-type (LGA1151) with Intel® Q370/H310 chipset
  • Wide operating temperature (-10 ~ 50 °C)
  • VGA and HDMI output
  • 2 x GigaLAN, 2 x USB 3.1 and 6 x USB 3.0
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
  • 1 x 2.5″ HDD/SSD, and 1 x mSATA
  • 9 ~ 36 VDC input power range
  • Supports 2 x LAN, isolation COMs, and 32-bit GPIO modules
  • Supports Advantech i-Modules
  • Supports Advantech SUSIAccess and embedded software APIs
CPU

8th Gen, i3, i5, i7

RAM

Up to 32GB

Operating temperature

-10 ~ 50 °C

Manufacturer

Advantech
